Clart P series

Master product

Clart P series

The Clart P Series nitrogen generators adopt pressure swing adsorption (PSA) carbon molecular sieve separation technology and can produce high-purity nitrogen.

High purity

Stable

Safe

Features

Purity: Can reach up to 99.999%.
Built-in air compressor, compact design: Some models can be placed under laboratory tables, with low operating costs.
Variable frequency control mode: It can intelligently control the start and stop of the air compressor, save energy and reduce consumption, and extend the life of the instrument.
Tri-Color Indicator Light: Red, white, and yellow lights indicate working status, with alarms for faults.
Clear interface: Real-time display of working status and operating parameters.
12 months on – site warranty.

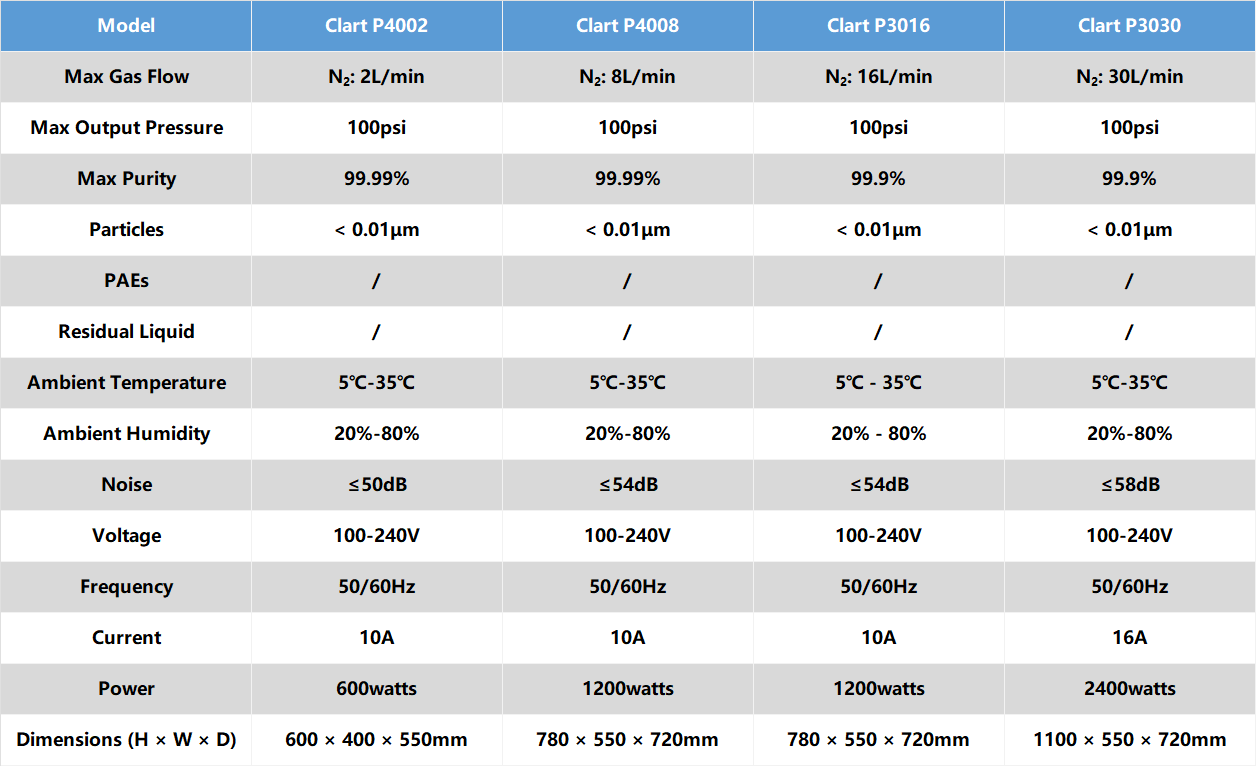

Product Parameters

Model	Clart P4002	Clart P4008	Clart P3016	Clart P3030
Max Gas Flow	N₂: 2L/min	N₂: 8L/min	N₂: 16L/min	N₂: 30L/min
Max Output Pressure	100psi	100psi	100psi	100psi
Max Purity	99.99%	99.99%	99.9%	99.9%
Particles	< 0.01µm	< 0.01µm	< 0.01µm	< 0.01µm
PAEs	/	/	/	/
Residual Liquid	/	/	/	/
Ambient Temperature	5℃-35℃	5℃-35℃	5℃-35℃	5℃-35℃
Ambient Humidity	20%-80%	20%-80%	20%-80%	20%-80%
Noise	≤50dB	≤54dB	≤54dB	≤58dB
Voltage	100-240V	100-240V	100-240V	100-240V
Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Current	10A	10A	10A	16A
Power	600watts	1200watts	1200watts	2400watts
Dimensions (H × W × D)	600 × 400 × 550mm	780 × 550 × 720mm	780 × 550 × 720mm	1100 × 550 × 720mm
