Master product

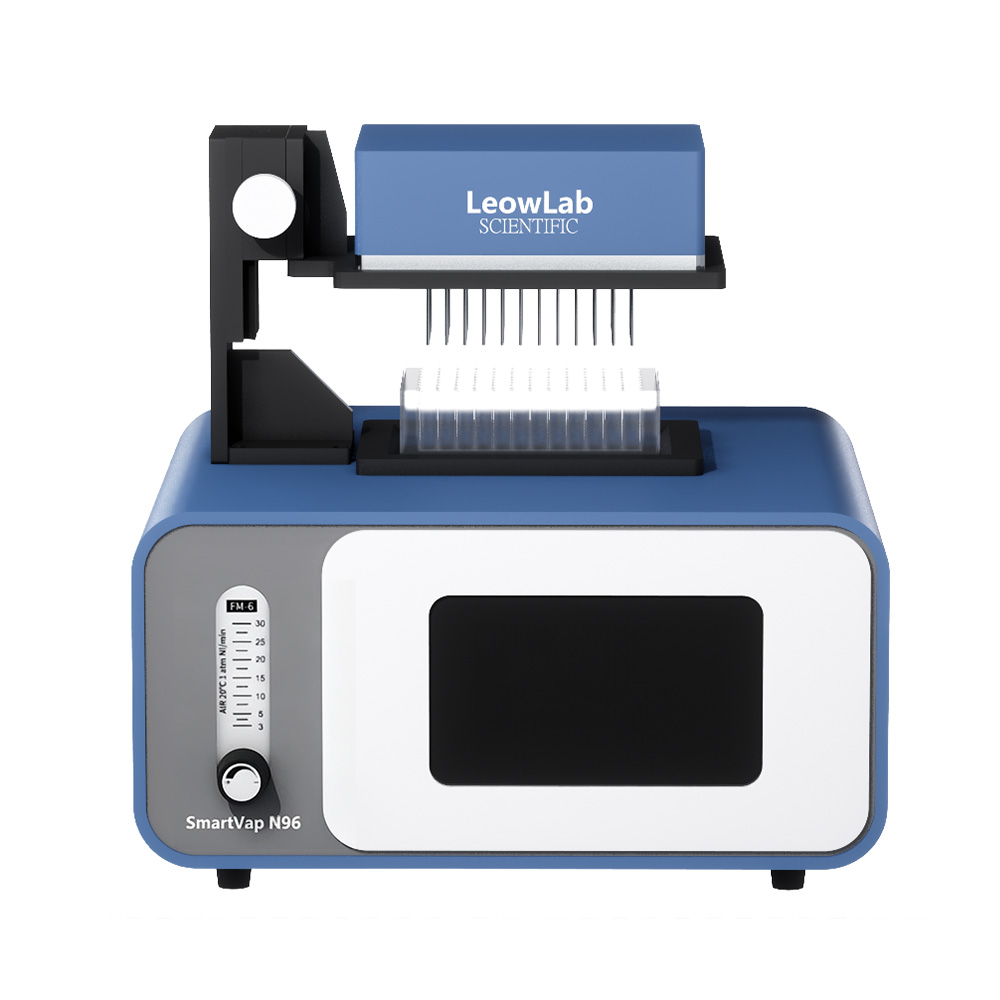

SmartVap N96

SmartVap N96 is suitable for high-throughput concentration of biological samples such as blood and urine. It is compatible with 96/48/24-well plate, chromatographic bottles and EP tubes. The input gas is evenly output to each nozzle through a multigas distribution system. It has the function of gas heating and plate heating, which can quickly and evenly concentrate the samples. Compared with the ordinary nitrogen evaporators, it can save at least 50% of the concentration time.

High Recovery Rate
Good Parallelism
Evaporate Rapidly
Aesthetic Design
Features
  • Dual heating: It reduces the gas consumption, shortens the concentration time, and improves the consistency of concentration, by dual heating at the top and bottom.
  • 96/48/24 positions: Support for 96/48/24-well plate, 24 positions 1.5/2ml centrifuge Tube or 1.5/2ml GC/LC vial.
  • Flexibly control the lifting of the manifold: Flexibly control the lifting of the manifold according to the requirements.
  • Clear interface: The interface is simple and clear, and supports Manual and Time modes.
  • Compact design, saving space.

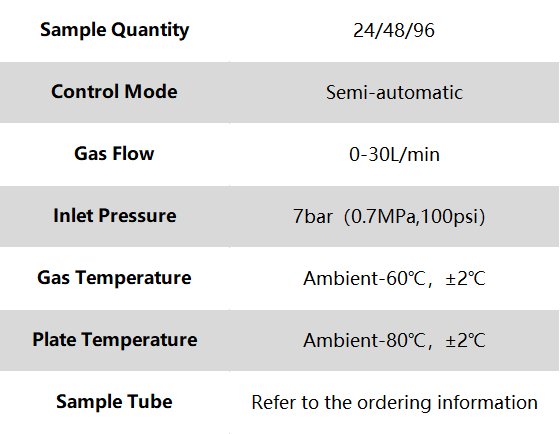

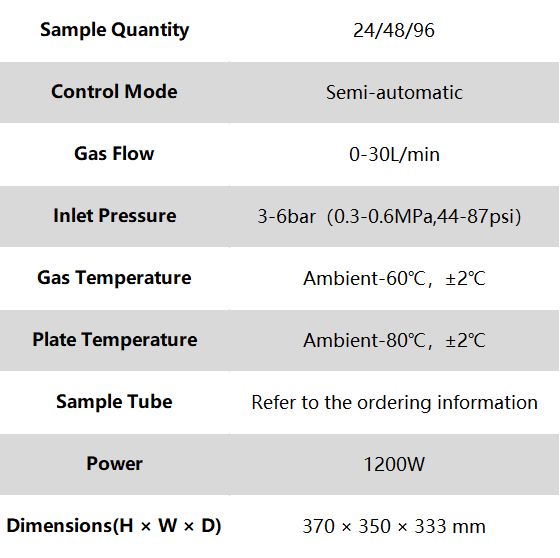

Product Parameters

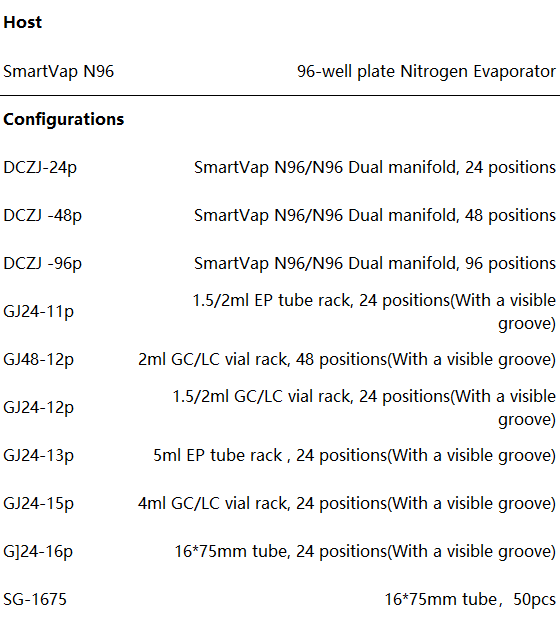

Ordering Information
Sample Quantity 24/48/96
Control Mode Semi-automatic
Gas Flow 0-30L/min
Inlet Pressure 7bar (0.7MPa,100psi)
Gas Temperature Ambient-60°C, ±2°C
Plate Temperature Ambient-80°C, ±2°C
Sample Tube Refer to the ordering information
Host
SmartVap N96 96-well plate Nitrogen Evaporator
Configurations
DCZJ-24p SmartVap N96/N96 Dual manifold, 24 positions
DCZJ -48p SmartVap N96/N96 Dual manifold, 48 positions
DCZJ -96p SmartVap N96/N96 Dual manifold, 96 positions
GJ24-11p 1.5/2ml EP tube rack, 24 positions(With a visible groove)
GJ48-12p 2ml GC/LC vial rack, 48 positions(With a visible groove)
GJ24-12p 1.5/2ml GC/LC vial rack, 24 positions(With a visible groove)
GJ24-13p 5ml EP tube rack , 24 positions(With a visible groove)
GJ24-15p 4ml GC/LC vial rack, 24 positions(With a visible groove)
GJ24-16p 16*75mm tube, 24 positions(With a visible groove)
SG-1675 16*75mm tube， 50pcs
Video
Related products
Positive Pressure Solid-Phase Extractor-Purifier A96

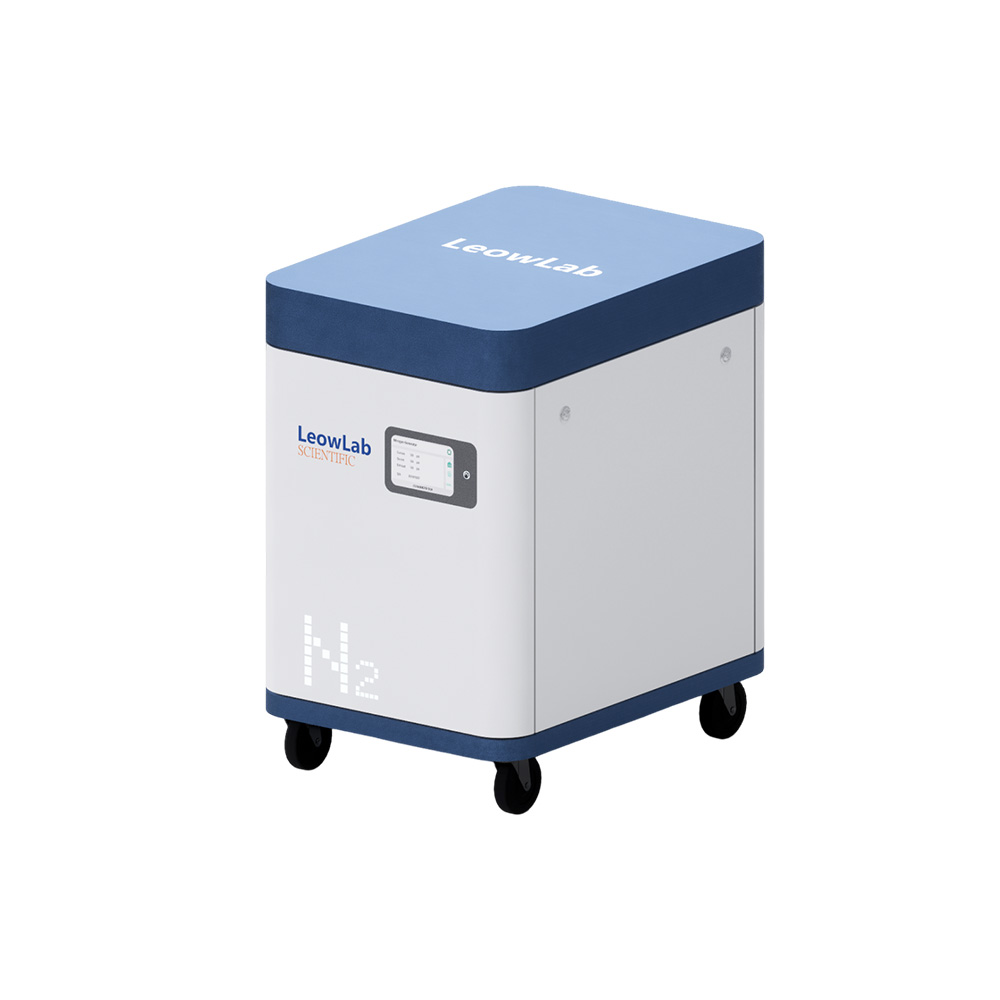

Nitrogen Generator-Clart MP40
