Clart M series

The Clart M series nitrogen generators adopt ultra-fine hollow fiber membrane separation technology. As carefully designed and reliable integrated products, they have wide applicability and can provide high-purity nitrogen solutions for LC-MS of brands such as Waters, Thermo, Agilent, Shimadzu, Bruker, EXPEC, and Advion.

Features
  • Purity: Can reach up to 99.5%.
  • Built-in air compressor, compact design: Some models can be placed under laboratory tables, with low operating costs.
  • Variable frequency control mode: It can intelligently control the start and stop of the air compressor, save energy and reduce consumption, and extend the life of the instrument.
  • Multiple water removal: Higher than the industry standard of three levels of water removal, to eliminate liquid.
  • Built in trap: Greatly remove NMHC, no need to worry about background interference at any time.
  • Tri-Color Indicator Light: Red, white, and yellow lights indicate working status, with alarms for faults.
  • Clear interface: Real-time display of working status and operating parameters.
  • 12 months on – site warranty.

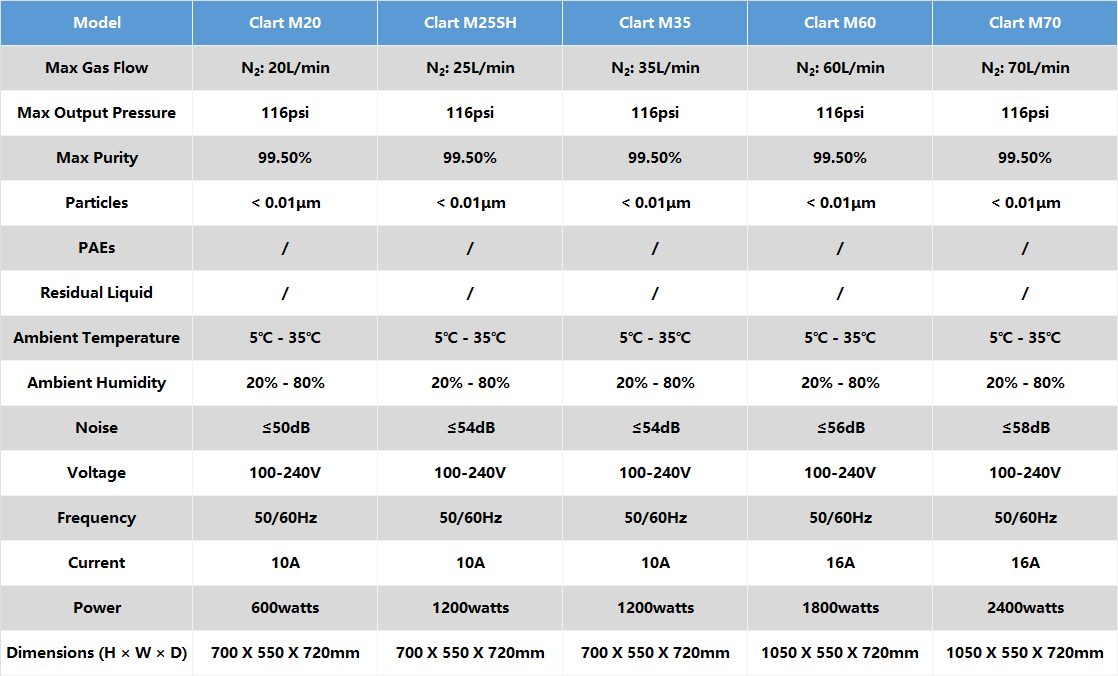

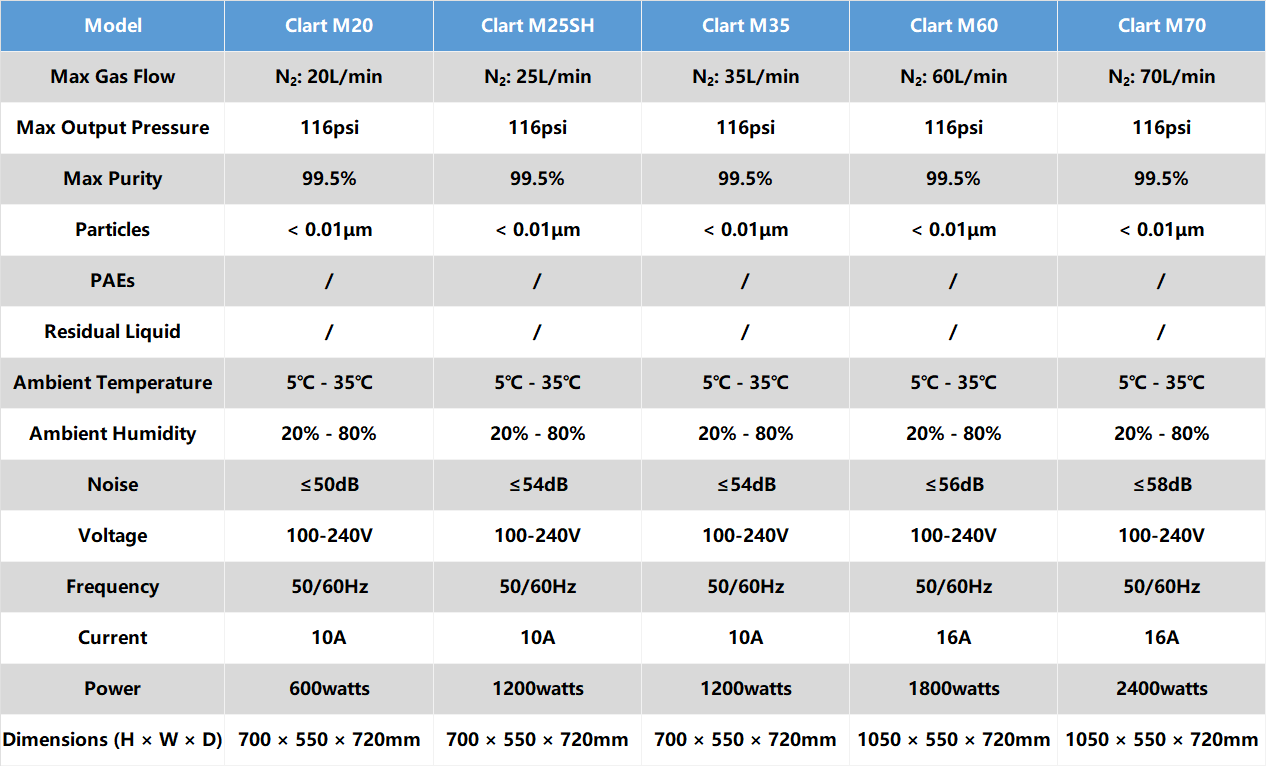

Product Parameters
Model Clart M20 Clart M25SH Clart M35 Clart M60 Clart M70
Max Gas Flow N₂: 20L/min N₂: 25L/min N₂: 35L/min N₂: 60L/min N₂: 70L/min
Max Output Pressure 116psi 116psi 116psi 116psi 116psi
Max Purity 99.5% 99.5% 99.5% 99.5% 99.5%
Particles < 0.01µm < 0.01µm < 0.01µm < 0.01µm < 0.01µm
PAEs / / / / /
Residual Liquid / / / / /
Ambient Temperature 5°C – 35°C 5°C – 35°C 5°C – 35°C 5°C – 35°C 5°C – 35°C
Ambient Humidity 20% – 80% 20% – 80% 20% – 80% 20% – 80% 20% – 80%
Noise ≤50dB ≤54dB ≤54dB ≤56dB ≤58dB
Voltage 100-240V 100-240V 100-240V 100-240V 100-240V
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Current 10A 10A 10A 16A 16A
Power 600watts 1200watts 1200watts 1800watts 2400watts
Dimensions (H × W × D) 700 × 550 × 720mm 700 × 550 × 720mm 700 × 550 × 720mm 1050 × 550 × 720mm 1050 × 550 × 720mm
