Clart EC10

Master product

Clart EC10

The Clart EC10 nitrogen generator adopts ultra-fine hollow fiber membrane separation technology. Specifically designed for ELSD and CAD detectors, it can provide stable nitrogen gas for an extended period.

High purity

Stable

Safe

Features

Purity: Can reach up to 99.5%.
Built-in air compressor, compact design: Some models can be placed under laboratory tables, with low operating costs.
Variable frequency control mode: It can intelligently control the start and stop of the air compressor, save energy and reduce consumption, and extend the life of the instrument.
Multiple water removal: Higher than the industry standard of three levels of water removal, to eliminate liquid.
Tri-Color Indicator Light: Red, white, and yellow lights indicate working status, with alarms for faults.
Clear interface: Real-time display of working status and operating parameters.
12 months on – site warranty.

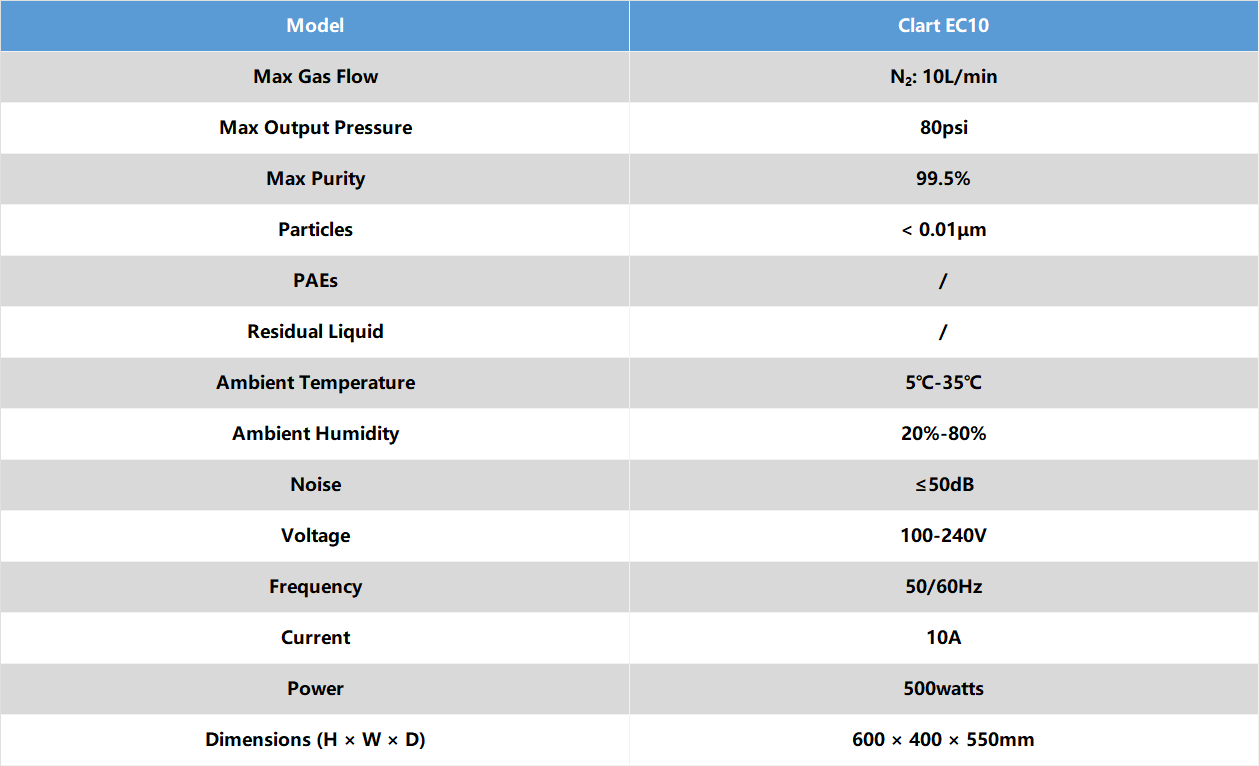

Product Parameters

Model	Clart EC10
Max Gas Flow	N₂: 10L/min
Max Output Pressure	80psi
Max Purity	99.5%
Particles	< 0.01µm
PAEs	/
Residual Liquid	/
Ambient Temperature	5℃-35℃
Ambient Humidity	20%-80%
Noise	≤50dB
Voltage	100-240V
Frequency	50/60Hz
Current	10A
Power	500watts
Dimensions (H × W × D)	600 × 400 × 550mm
