Clart MD series

The Clart MD series nitrogen generators adopt ultra-fine hollow fiber membrane separation technology. They can simultaneously supply high-purity nitrogen and air for LC-MS of brands such as Shimadzu, PE, and operate stably for a long time.

High purity

Stable

Safe

Features

Purity: Can reach up to 99.5%.
Built-in air compressor, compact design: Some models can be placed under laboratory tables, with low operating costs.
Variable frequency control mode: It can intelligently control the start and stop of the air compressor, save energy and reduce consumption, and extend the life of the instrument.
Multiple water removal: Higher than the industry standard of three levels of water removal, to eliminate liquid.
Built in trap: Greatly remove NMHC, no need to worry about background interference at any time.
Tri-Color Indicator Light: Red, white, and yellow lights indicate working status, with alarms for faults.
Clear interface: Real-time display of working status and operating parameters.
12 months on – site warranty.

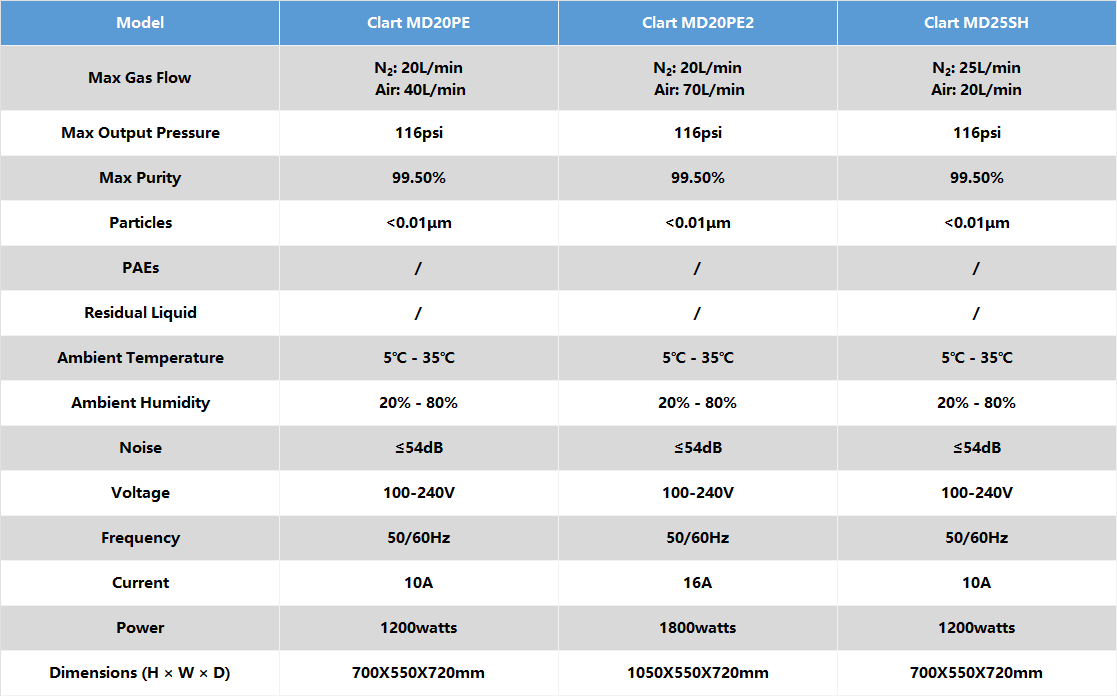

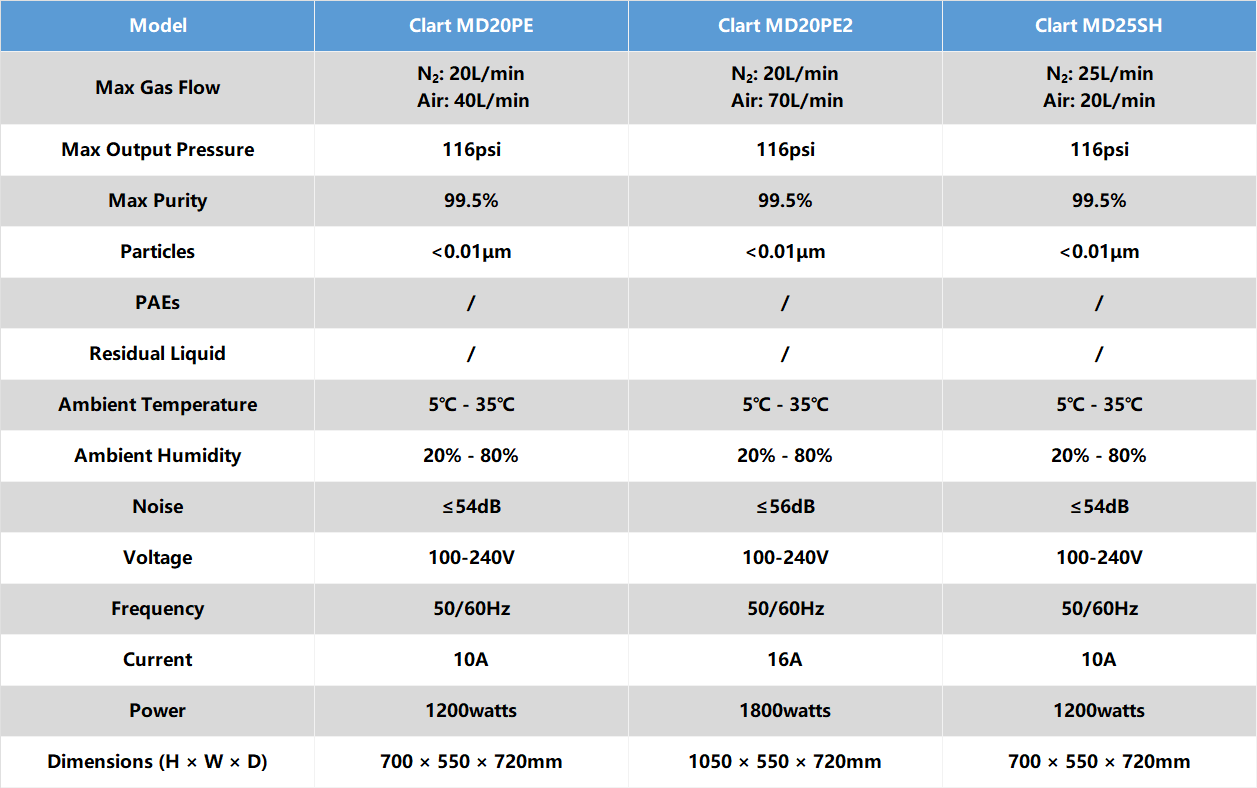

Product Parameters

Model	Clart MD20PE	Clart MD20PE2	Clart MD25SH
Max Gas Flow	N₂: 20L/min Air: 40L/min	N₂: 20L/min Air: 70L/min	N₂: 25L/min Air: 20L/min
Max Output Pressure	116psi	116psi	116psi
Max Purity	99.5%	99.5%	99.5%
Particles	<0.01µm	<0.01µm	<0.01µm
PAEs	/	/	/
Residual Liquid	/	/	/
Ambient Temperature	5°C – 35°C	5°C – 35°C	5°C – 35°C
Ambient Humidity	20% – 80%	20% – 80%	20% – 80%
Noise	≤54dB	≤56dB	≤54dB
Voltage	100-240V	100-240V	100-240V
Frequency	50/60Hz	50/60Hz	50/60Hz
Current	10A	16A	10A
Power	1200watts	1800watts	1200watts
Dimensions (H × W × D)	700 × 550 × 720mm	1050 × 550 × 720mm	700 × 550 × 720mm
