Master product

SmartVap QE

SmartVap QE adopts the air vortex shearing technology, which can avoid cross-contamination and improve the recovery rate at the same time. They provide diversified method choices through various evaporation modes. Each sample position is equipped with an optical sensor, enabling automatic volume calibration to 0.5/1ml.

Quantitative Concentration
High Recovery Rate
Good Parallelism
Aesthetic Design
Features
  • Gas Vortex shear technology: The gas has a large contact area with the samples, the gas flow purging is gentler, so that the samples are not easy to splash.
  • Intelligent Evaporation: Four modes: Manual mode, Time mode, Step gradient mode and Ramp gradient mode. Optimize the evaporation process.
  • Uniform gas flow: The gas is evenly distributed to each nozzle to ensure good parallelism.
  • Can automatically concentrated to 0.5/1.0 ml.
  • Independent gas flow: Control each row of nozzles independently to reduce gas loss.
  • A variety of racks are available: Suitable for sample tubes of different diameters and heights.
  • Adjustable nozzles position: Nozzles can be adjusted to the left and right.
  • Four color water bath lighting: Easy to observe the evaporation process.

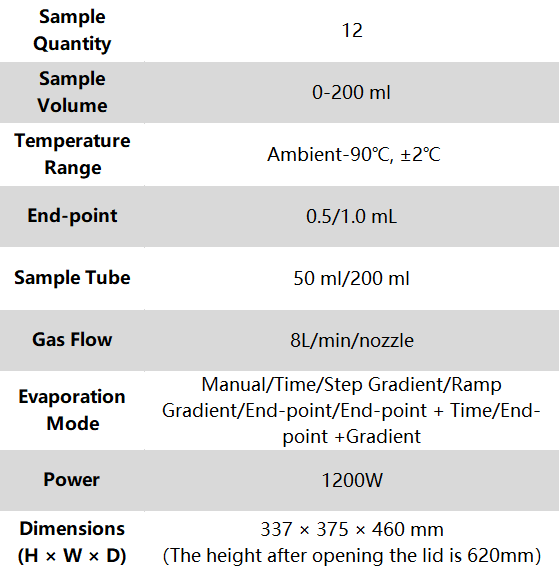

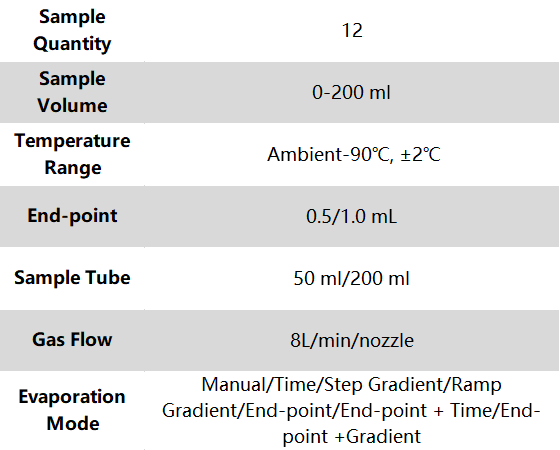

Product Parameters

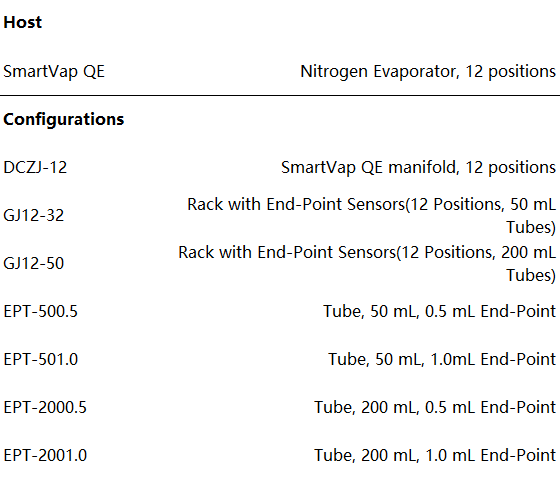

Ordering Information
