SmartVap N96 Dual

SmartVap N96 Dual is suitable for high-throughput concentration of biological samples such as blood and urine. It is compatible with 96/48/24-well plate, chromatographic bottles and EP tubes. The input gas is evenly output to each nozzle through a multi-gas distribution system. It has the function of gas heating and plate heating, which can quickly and evenly concentrate the samples. Intelligent High Recovery Rate Evaporate Rapidly Agile and Variable The software control two independent concentration channels, and set temperature, gas flow, and descending height. It supports four different concentration modes, including Manual mode, Time mode, Step Gradient mode, and Ramp Gradient mode. Compared with the ordinary nitrogen evaporators, it can save at least 50% of the concentration time.

Features
  • Intelligent concentration: Can gradiently control flow, rise or fall of manifold, to achieve optimal concentration program.
  • Dual heating: It reduces the gas consumption, shortens the concentration time, and improves the consistency of concentration, by dual heating at the top and bottom.
  • 96/48/24 positions: Support for 96/48/24-well plate, 24 positions 1.5/2ml centrifuge Tube or 1.5/2ml GC/LC vial.
  • Independent & Dual Mode: True 2-in-1 functionality. Run one method on two plates simultaneously, or two independent evaporations.
  • Smart Door Technology: Just open the door and the system pauses your run and the lift returns to home. Grab your sample, make your changes, and close the door. Your run resumes right where it left off.
  • Clear interface: Can operate without training.
  • Experimental bench or fume hood: The built-in exhaust pipe of the evaporator can be connected to the laboratory exhaust system, making the placement of the instrument more flexible.
  • Compact design, saving space: As a dual-plate evaporator with a built-in exhaust system, it has dimension of only 415×400×400 mm.

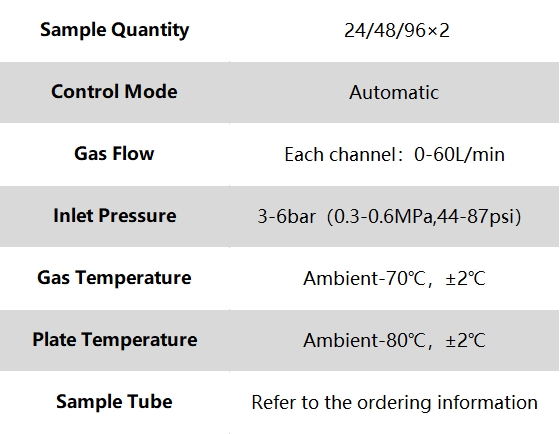

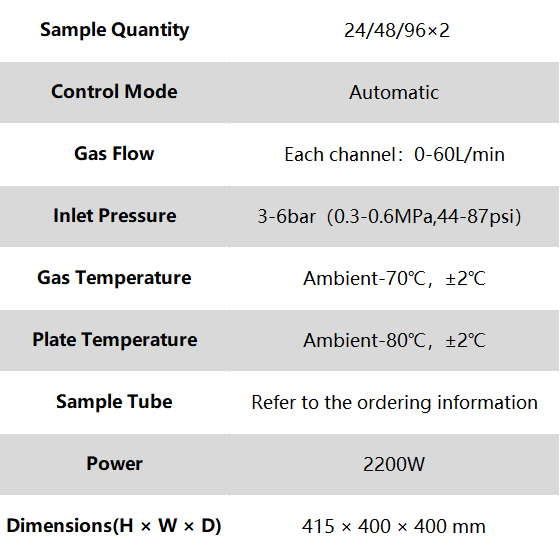

Product Parameters

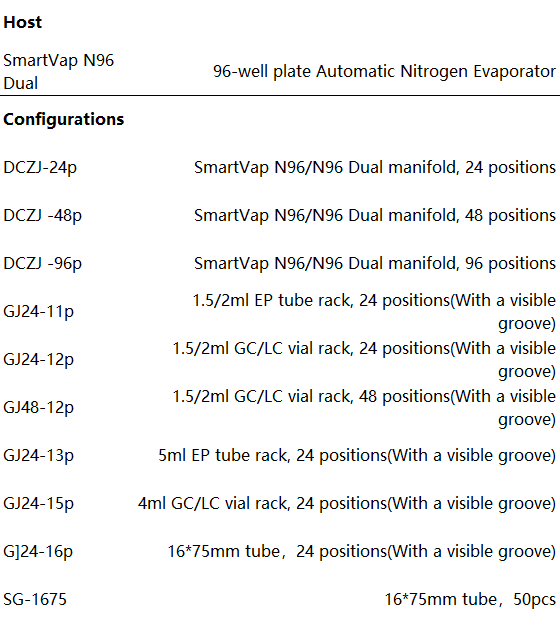

Ordering Information
